20 thru 10 Meter Fan Dipole

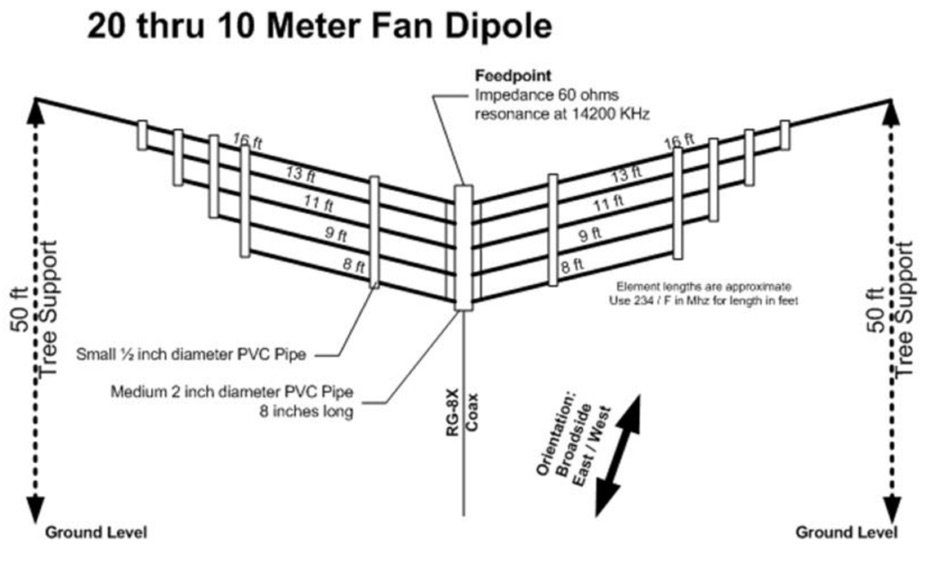

The 20 thru 10 meter dipole is constructed from stranded insulated wire available in most hardware stores.
The feedpoint uses an 8 inch long section of 2 inch diameter PVC pipe. A section of wire joins the elements at either side of the feedpoint to avoid the inductance of square knots used on lower frequencies.
