ICOM IC-705 – New Product

New Icom QRP transceiver announced in Tokyo HamFair 2019

13601
ICOM IC-705

Icom introduces the IC-705, new all bands all modes QRP transceiver at Tokio HamFair taking place in Ariake, Tokyo on August 31st – September 1st 2019.

The IC-705 is a new compact size portable transceiver that incorporates a real-time spectrum scope and waterfall display, with full RX Coverage from HF to 2 meters band, and full TX coverage from HF to UHF, including the 70 MHz in the European version.

Here below the official English IC-705 Video

Official Video By Icom
IC-705 by Icom

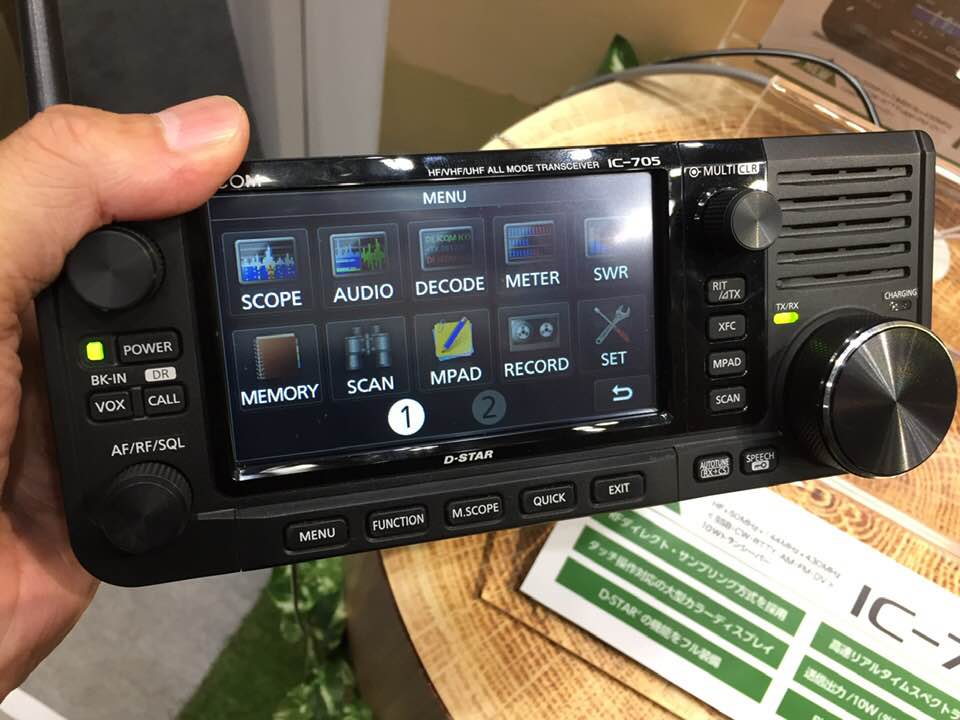

ICOM IC-705 Hi-res picture

Main Features

  • TX Bands: HF 50MHz 144MHz 430MHz (70 MHz for European Version)
  • Reception: Continuous from HF to 2 meters, including Airband and FM Broadcast
  • Modes: SSB CW RTTY AM FM D-Star DV
  • RF Direct Sampling System
  • Real-time spectrum scope and waterfall display
  • 4.3 inch Touch Screen Display
  • Compact Size 20cm(7.9 Inch)x8cm(3.1 Inch)x8,5cm(3.3 Inch), Wight 1 Kg
  • Li-ion BP-272 Battery Pack
  • Output Power: 5W (Battery) – 10W (13.8 V DC)
  • Bluetooth and Wireless LAN for mobile device Remote Control
  • GPS: Antenna and Logger, to be used in D-Star DV Mode
  • MicroSD Card Slot for firmware upgrades, voice recording, GPS Log
  • D-Star: full functions, save and display pictures
  • Antenna: VHF UHF Whip antenna included
  • SP Mic: with programmable buttons, included
  • Backpack: multi-function, optional
IC 705 Trasceiver
ICOM IC-705

ICOM IC-705 is currently presented as Prototype. Please note that above features are an extract of currently available documentation. IC-705 availability date and price to be announced.

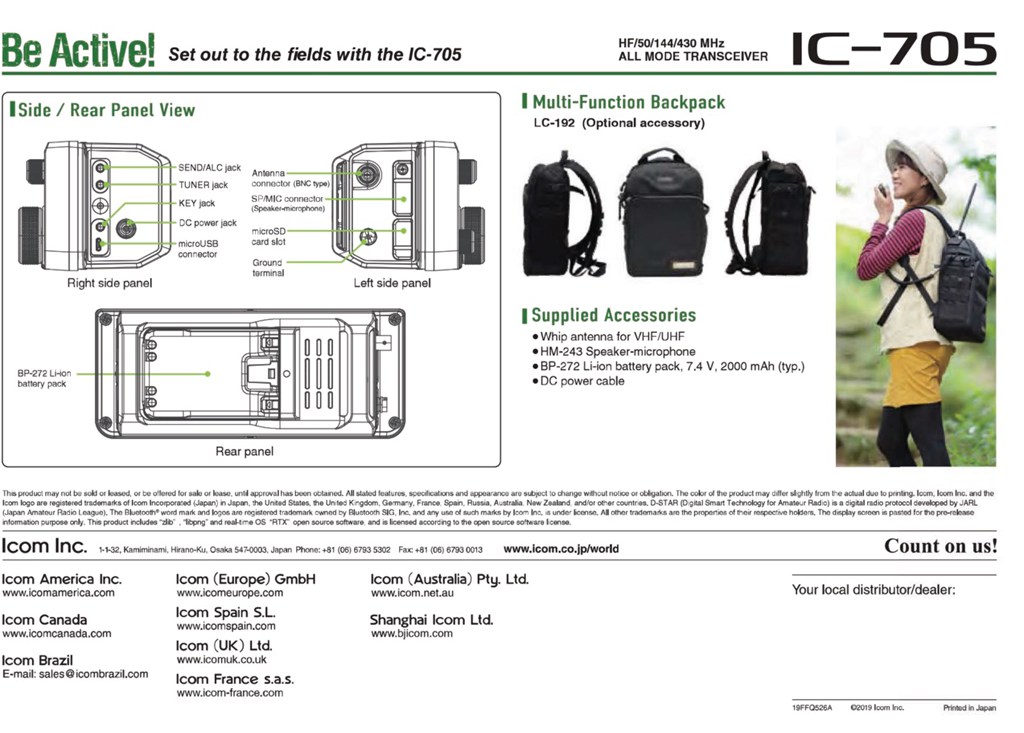

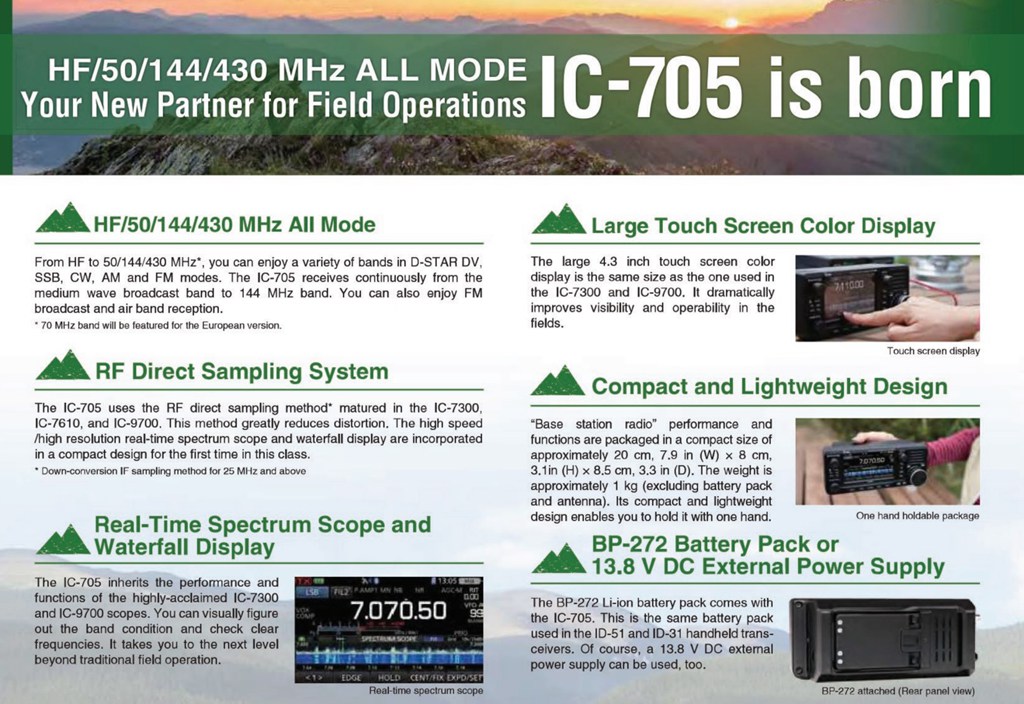

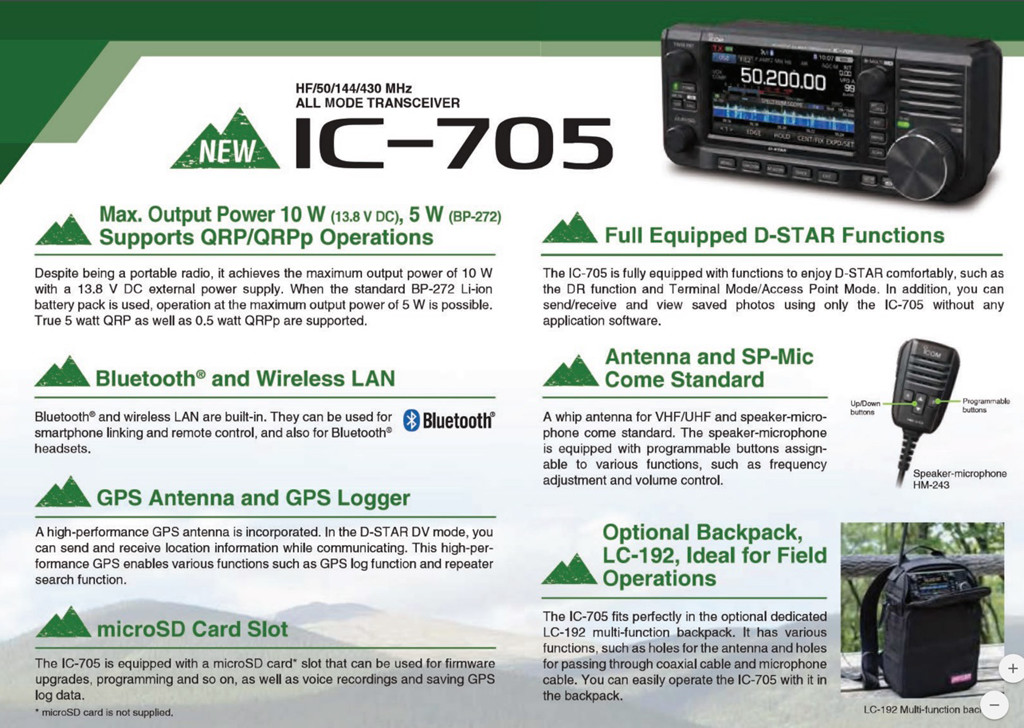

IC-705 Pre release information
IC-705 leaflet cover

IC-705 Presentation in English at Tokyo HamFair

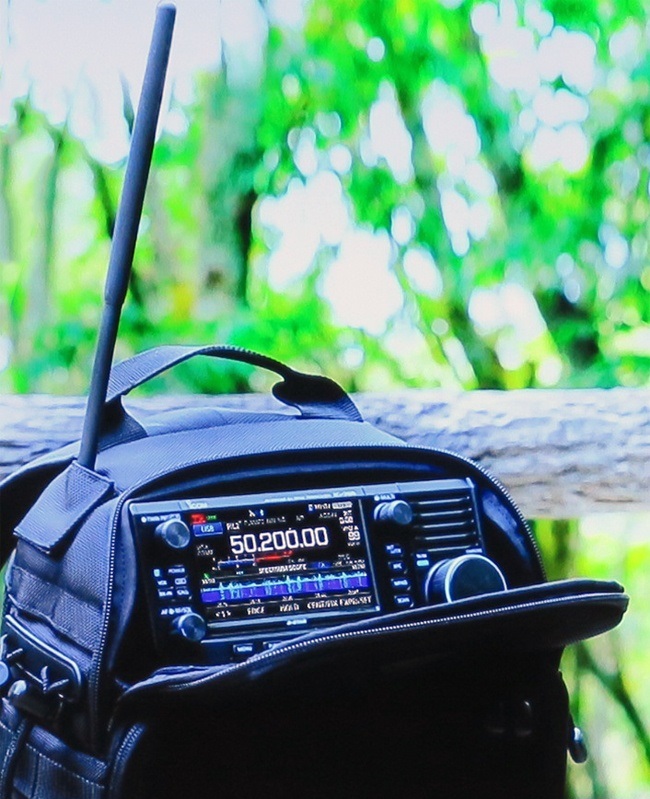

Picture gallery

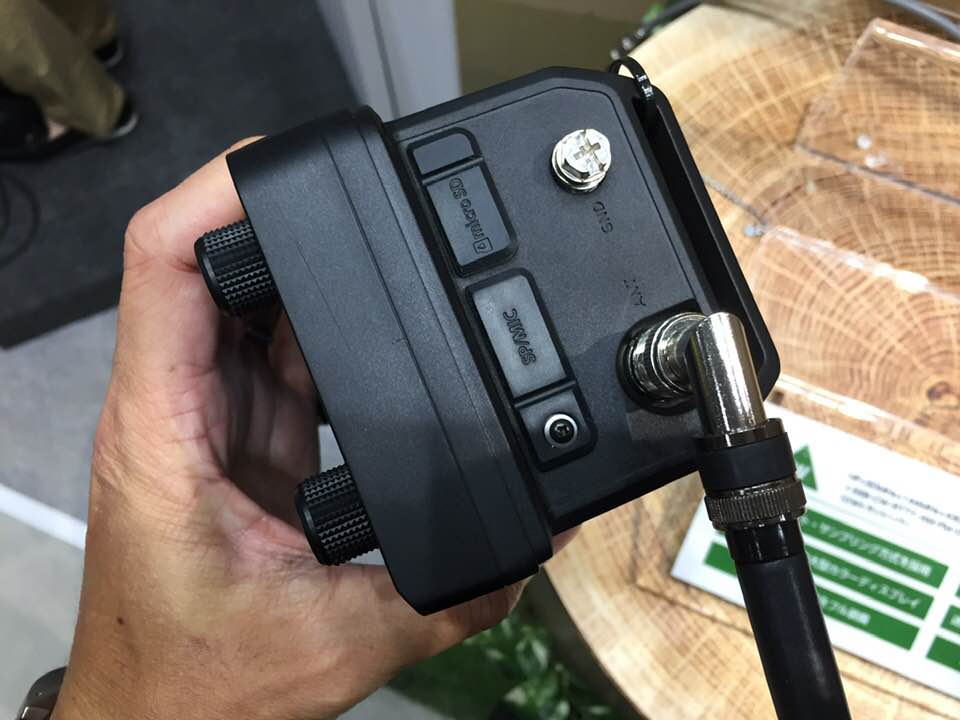

ICOM IC 705 pictures taken from social media networks

Youtube Videos

Here some Youtube videos posted in recent hours about the new Icom QRP Transceiver. Videos are coming directly from the HamFair 2019 in Tokio, and represent the first videos of the new ICOM Product.

Comparing ELECRAFT KX3 to ICOM IC-705

Early pictures and info

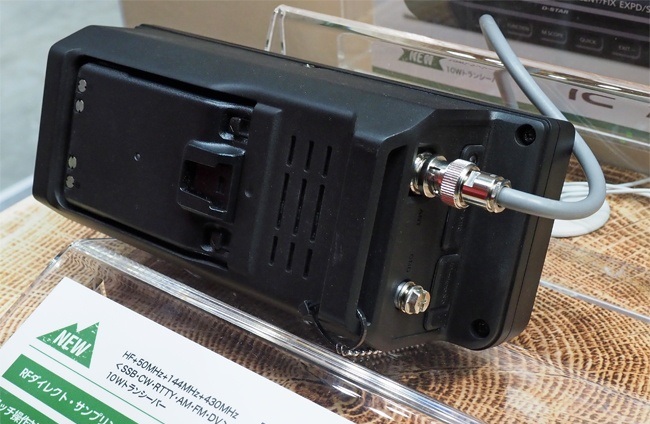

Here below the first images taken during the exibition preparation at the Icom both, before the official opening of the HamFair in Tokyo.
