SunSDR2 PRO

Compact HF to VHF SDR Transceiver with a modern design

5838
Sun SDR2 Pro

SunSDR2 PRO

Expert ElectronicsThe Expert Electronics SunSDR2 PRO is a compact HF to VHF Transceiver with a modern design.

Max HF Power is 15 W, reduced to 7 W in VHF. Receiver architecture is based on 16 bit DDC (digital down conversion) with a 14 Bit DUC (Digital Up Conversion) used in TX.

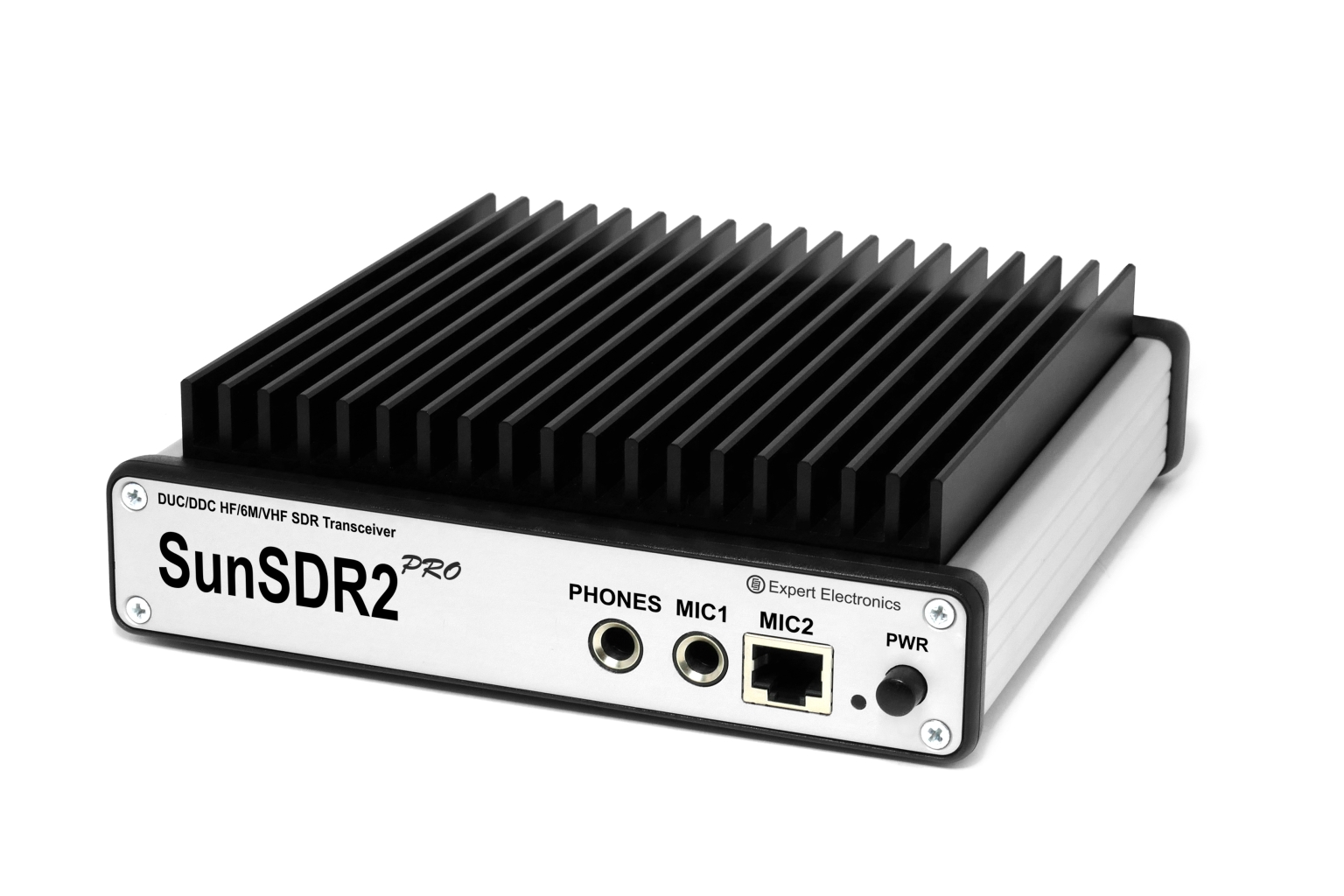

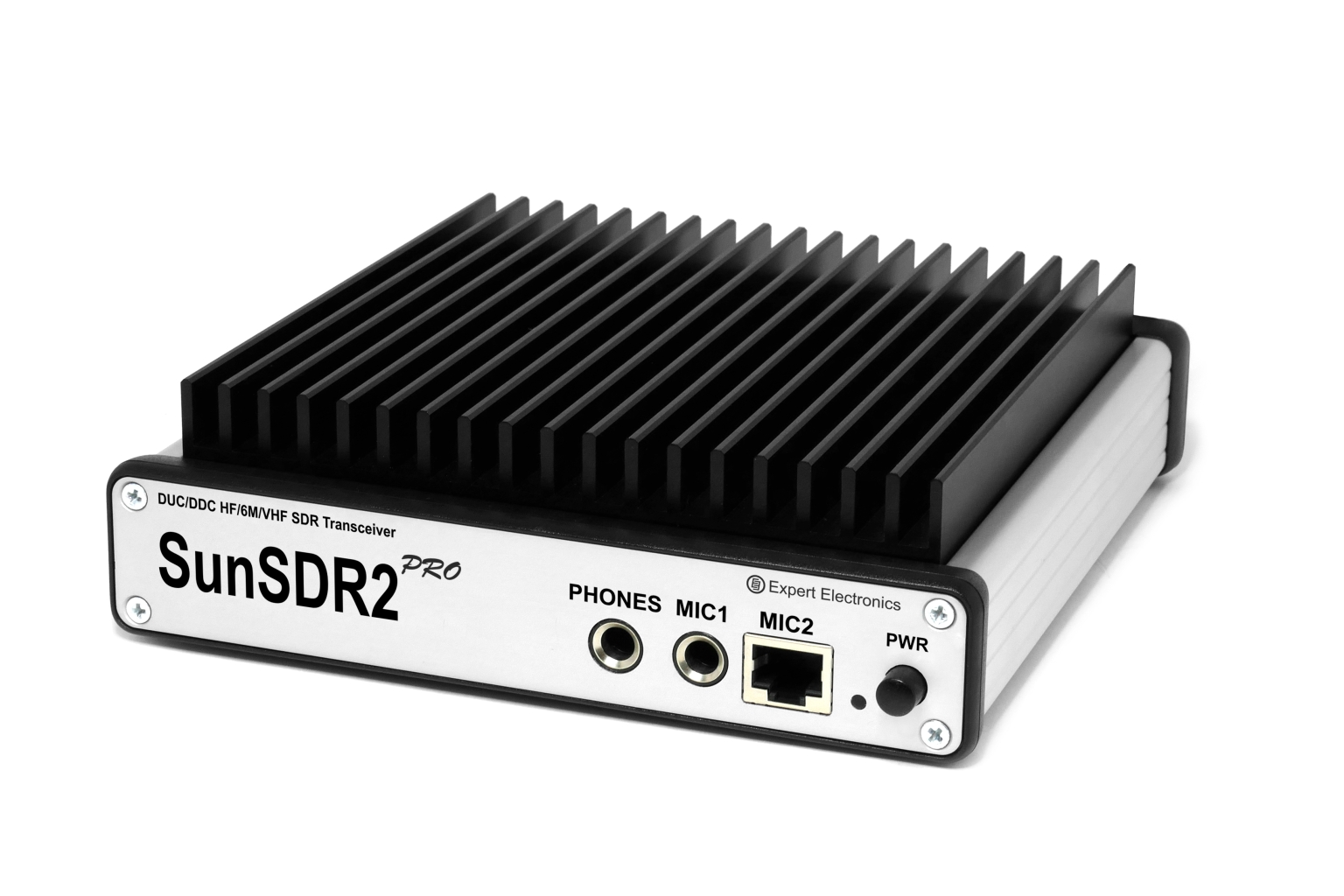

External connections includes, a 100 Mb/s LAN Ethernet port, Wi-Fi (optional), Jacks for Phones and Microphone, plus an additional Yaesu standard Mic 2 socket.

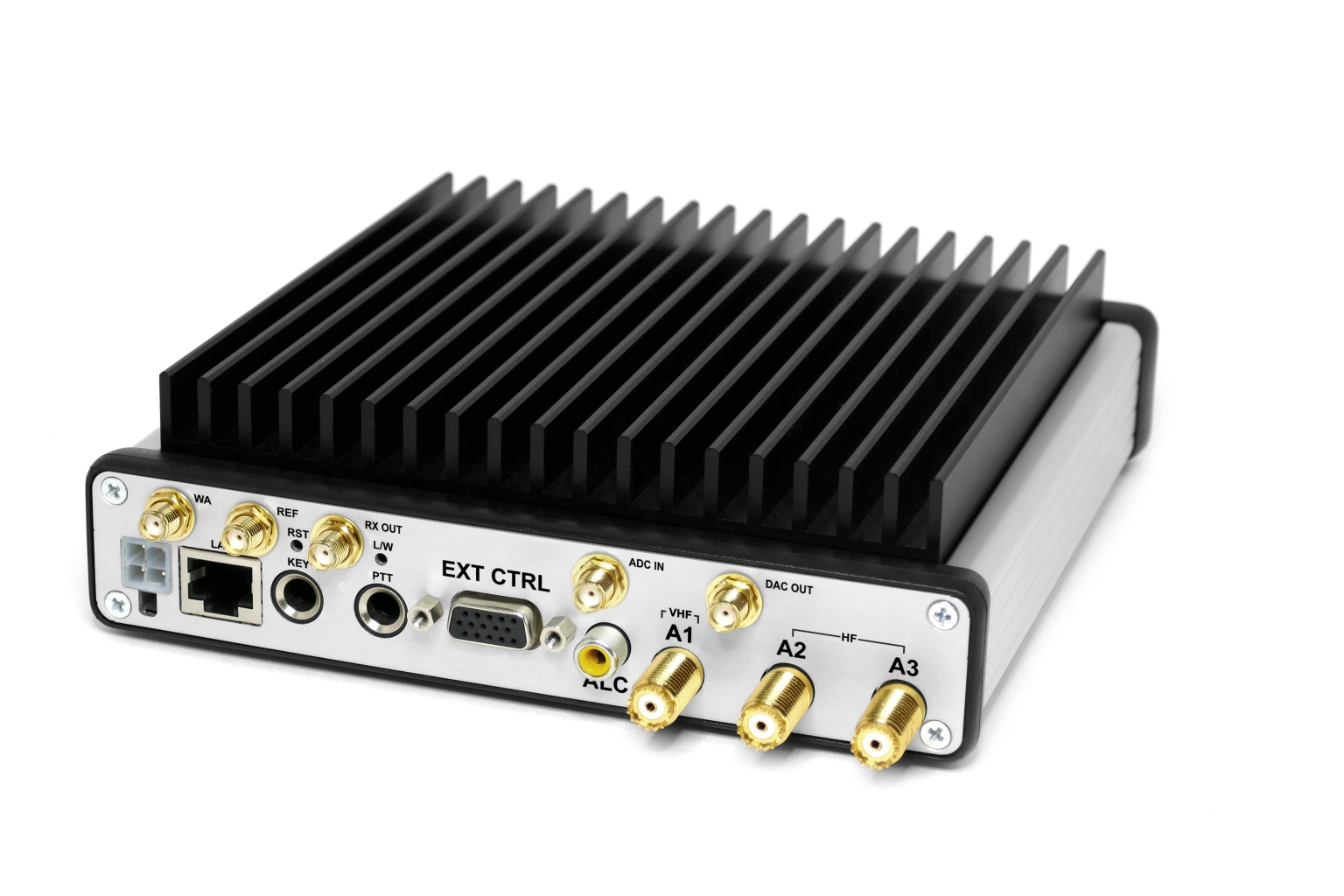

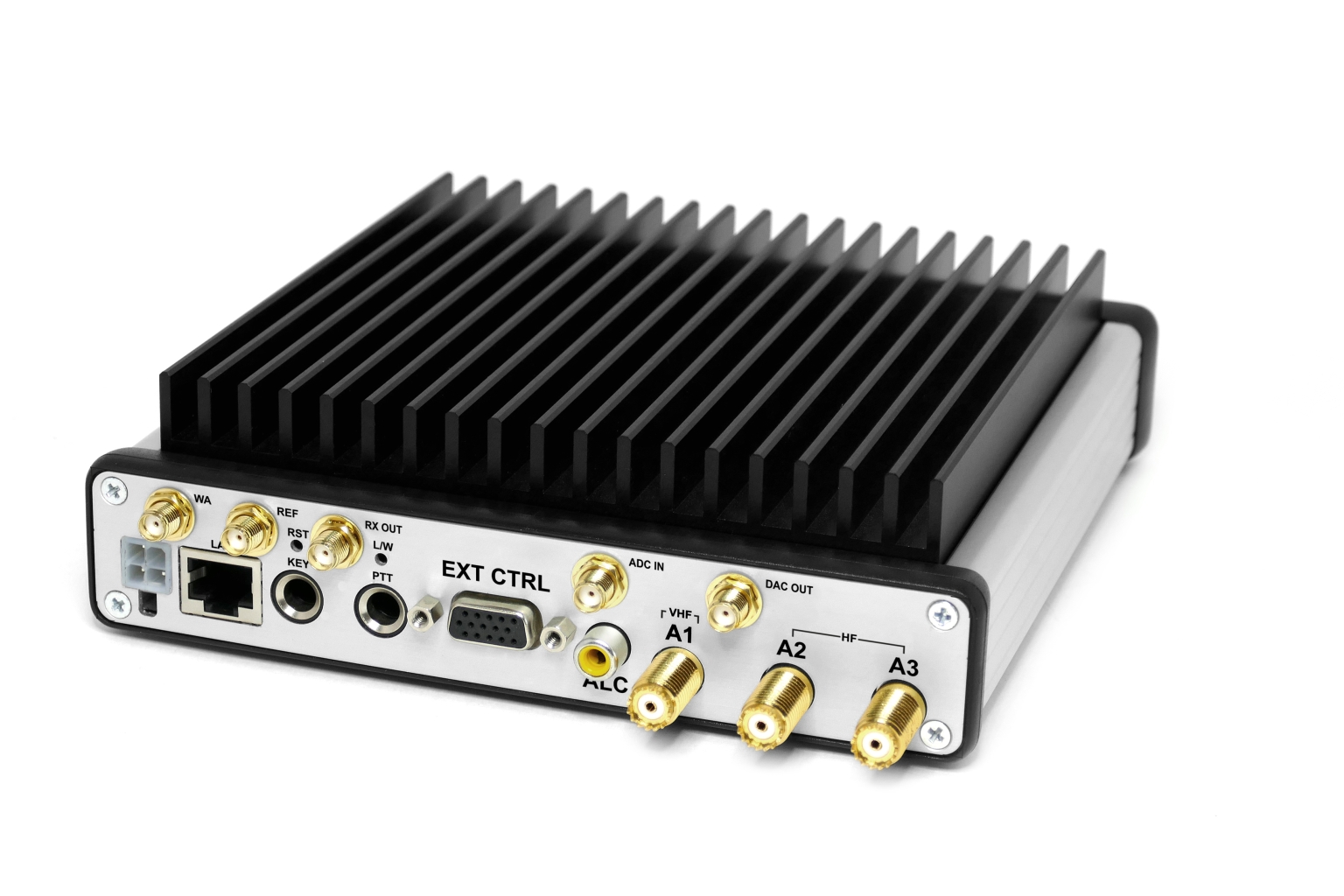

Antenna connection is via two mini-UHF connectors for HF and an additional one for VHF.
The back of the radio includes also two standard Jack connections for a Morse key and external PTT control.

Price 2110 USD

SunSDR2 Pro Specifications

General coverage receiver

0.09 to 65MHz and 95 to 148MHz

Frequency coverage, HF Tx

All amateur bands

Frequency coverage, VHF Tx

144 to 146MHz

Sensitivity μV

0.07μV

Maximum Tx power HF

15W

Maximum Tx power VHF

7W

Blocking dynamic rage, HF

129dB

Blocking dynamic range, VHF

>114dB

ADC clock frequency/ resolution

160MHz/16-bit

DAC clock frequency/resolution

640MHz/14-bit

Power supply

12 to 16 volts, 15V recommended at 5A

Dimensions

165 x 165 x 35mm

Weight

1kg



SunSDR2 Pro Brochure

Loader Loading...
EAD Logo Taking too long?
Reload Reload document
| Open Open in new tab

Download [652.21 KB]

SunSDR2 Video

SOURCEExpert Electronics
