Easy-to-build UHF J-Pole Antenna
Build a simple and effective UHF J-Pole antenna with common hardware for the 70cm band.
Description

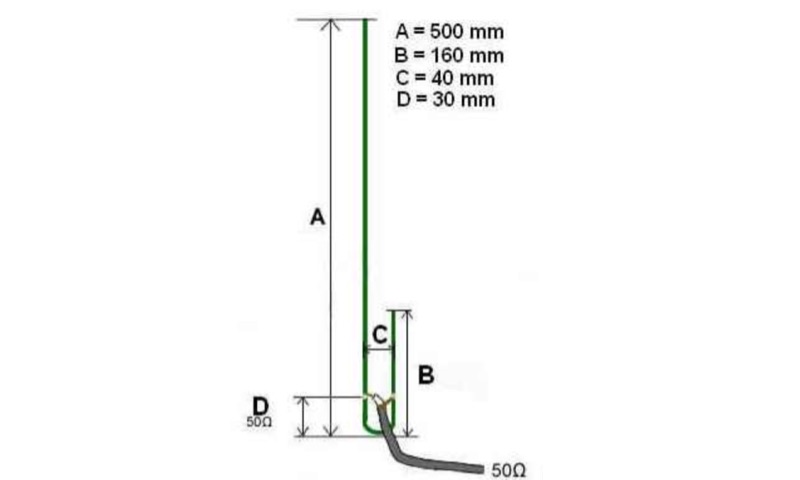

The UHF J-Pole antenna described here utilizes an aluminum angle bar and 4mm galvanized threaded rod for its construction, with dimensions based on a previously published design. Assembly involves drilling the angle bar, securing threaded rod sections with nuts, and connecting the coaxial cable via cable lugs, ensuring the braid connects to the shorter element.
ROS adjustment is achieved by manipulating nuts approximately 30mm from the angle bar, allowing for fine-tuning of the impedance match. Once optimal tuning is established, super glue is applied to seal the coaxial cable ends and protect the threaded rod cuts from corrosion, enhancing durability.
This project emphasizes rapid realization with common hardware, providing a practical solution for radio amateurs seeking a simple yet effective antenna for the 70cm band.
