Portable Magnetic Loop Antenna Version 2
By G4FONSimple multi-band magnetic loop antenna design for 20, 30, and 40 meters using RG58 coax cable.

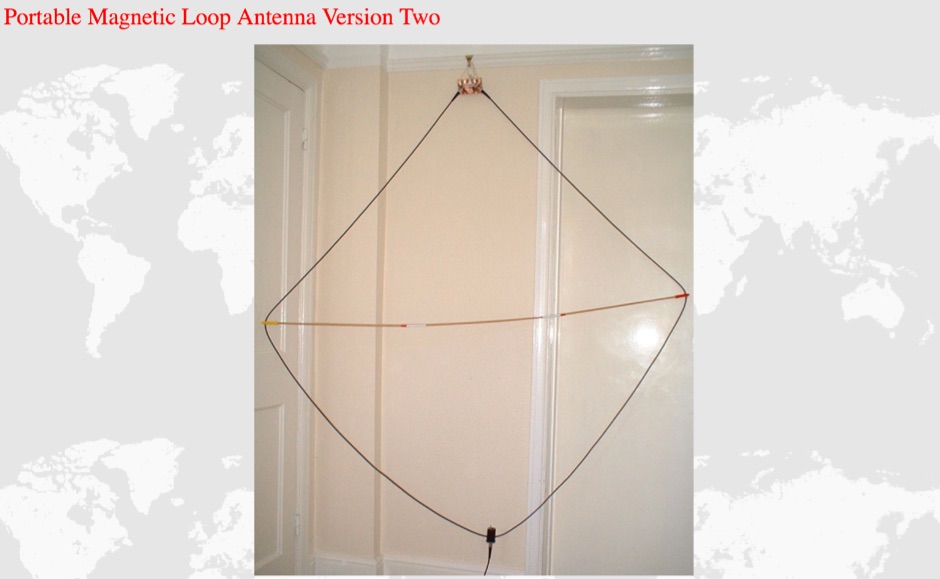

A simple multi-band magnetic loop antenna designed for 20, 30 and 40 metres, made from 16 feet of RG58 coax cable. The performance is impressive for its size but not meant to replace a Yagi. The antenna features a tuning head, matching unit, tuning capacitors, band change switch, and matching transformer. The feedpoint is at the bottom of the loop. The document provides detailed instructions on assembly and operation.
