Vertical J-Pole for motorcycle use
A DIY J-pole vertical antenna project for motorcycle mounting on the UHF band.
Description

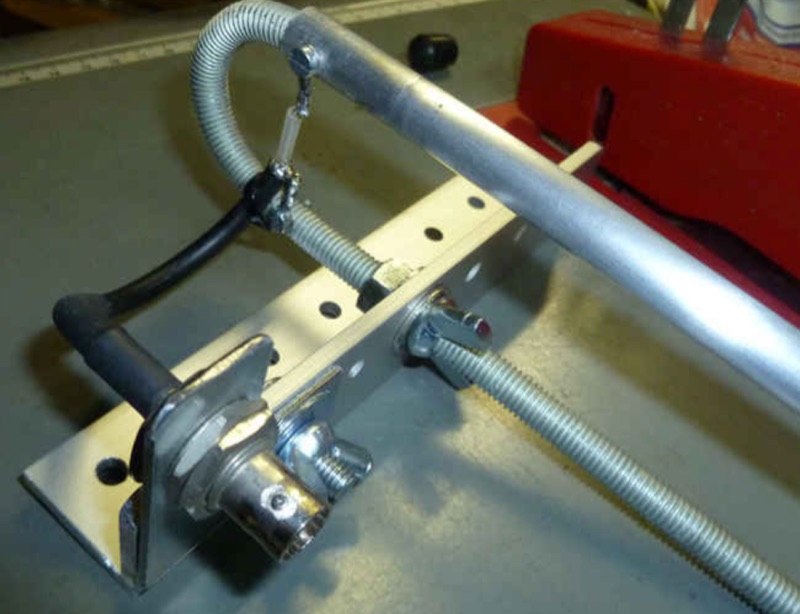

The resource details the construction of a J-pole vertical antenna specifically engineered for motorcycle mounting, addressing the common issue of interference with top cases. It outlines the fabrication process, beginning with an aluminum angle bracket for secure attachment to the lateral support, followed by the creation of the antenna's base from an 8mm threaded rod bent into a U-shape, approximately 40mm wide. The article specifies the precise method for coaxial cable connections using eyelets and 3mm screws, ensuring robust contact.
Further construction steps involve fitting a 10mm aluminum tube onto the threaded rod, with a screw securing the radiating element and establishing core contact. The design prioritizes mechanical stability against vehicle vibrations over fine-tuning SWR with sliding collars. Initial testing yielded a SWR of 1.2 across a significant portion of the band, with improvements noted by optimizing the coaxial braid contact point near the support bracket.
The document provides practical insights into material selection and assembly, emphasizing durability for mobile operation. It concludes with aesthetic options, allowing the builder to paint the antenna or retain its natural aluminum finish, making it a functional and adaptable solution for UHF motorcycle communications.
